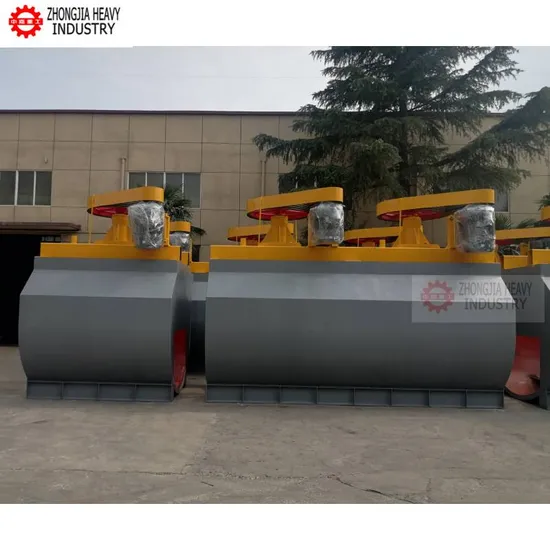

Bf Flotator Cell Machine Flotation for Copper Ore / Gold Ore

Basic Info.

Model NO.	BF
Material	Carbon Steel
Material Feature	Wear-Resisting
Certification	ISO9001:2008
Energy Saving	Energy Saving
Warranty	1 Year
Color	Multi Color
Customized	Customized
Condition	New
After-sales Service	Installation Guide, Spare Part Supplying
Spare Part	Rubber Impeller
Transport Package	Nude
Specification	BF0.37-BF24
Trademark	ZHONGJIA
Origin	Henan, China
HS Code	8474100000
Production Capacity	100 Set/Year

Product Description

BF flotator cell machine flotation for copper ore / gold ore / lead ore / zinc oreThe main feature of the BF flotation machine is to maintain the advantages of the self suction air and slurry of the "A" type flotation machine without the need for ladder configuration. But compared with "a" flotation machine, the suction volume is large, the impeller speed is low, the clearance between impeller and cover plate is large and wear is light. The flotation machine can be used for convenient process arrangement, especially for small and medium-sized concentrators with complex process and many separation sections.
BF flotation machine
1. The suction volume is large and the power consumption is low.2. Each tank has suction, slurry suction and flotation self forming flotation circuit, without any auxiliary equipment, horizontal configuration, easy to change the process.3. The slurry in the tank is recycled under the condition of lower circulation, which is conducive to the suspension recovery of coarse minerals.4. It is equipped with manual control, automatic control and electric control device for pulp surface, which is convenient to adjust.5. Impeller is composed of closed double cone, which can produce strong pulp circulation.Technical parameter

Model	Volume (m3)	Air suction(m3/m2. /min )	Motor power( kw)	capacity (m3/ min)	Single tank weight( kg )
BF0.15	0.15	1.0-1.10	1.5	0.06-0.16	280
BF0.25	0.25	1.0-1.10	1.5	0.12-0.28	386
BF0.37	0.37	1.0-1.10	4.5	0.2-0.4	482
BF0.65	0.65	1.0-1.10	3.0	0.3-0.7	940
BF1.2	1.2	1.10-1.20	4.0,5.5	0.6-1.2	1392
BF2.0	2.0	1.10-1.20	7.5	1.0-2.0	1800
BF2.8	2.8	1.10-1.20	11	1.4-3.0	2160
